Geotech Instruments, LLC

Broadband Borehole Seismometer

Model KS-54000-IRIS



  • Ultra low noise
  • Three-component system
  • 0.003 to 5 Hz
  • Cased borehole installation

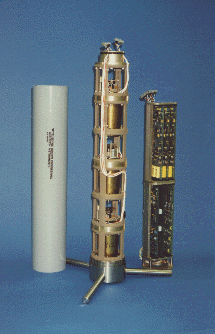

Geotech's Model KS-54000-IRIS is a borehole, three-component seismometer, designed for ultra low-noise monitoring for frequencies from 0.003 to 5 Hz, being below the Low Noise Model for the whole frequency band. It was developed in a joint effort with IRIS to fill the need for a cost-effective version of the KS-36000 seismometer which preceded it. The KS-54000 instruments have been a vital component in the test ban monitoring programs.

Typical installations are in cased boreholes at depths of approximately 100 m for maximum isolation from cultural surface noise. A less expensive version, the KS-54000-P Posthole sensor, is designed for installations approximately 10 m deep where surface noise is not a consideration.



TECHNICAL SPECIFICATIONS

OPERATING CHARACTERISTICS

Configuration

Number of outputs and Type
Sensitivity
Response
Distortion
Noise
Leve
l
Output, Mass Monitor
Sensitivity
Response
Level
Calibration Input
Resistive Mode
Capacitive Mode
Type
Level
Power Requirements
Operating
Installation

   - Three-component

- Three, differential
- 2400 V/(m/sec)
- Flat to velocity, 0.003 to 5 Hz
- Less than 100 ppm to ½ full scale
- Below the USGS Low Noise Model in the passband
- 40 Vp-p, maximum

- Three, single-ended
- 510 V-sec²/m
- Flat to acceleration, DC to 5 Hz
- 20 Vp-p, maximum

- Equivalent to flat earth acceleration
- Equivalent to flat earth velocity
- Voltage - sine wave, pulse, etc.
- 20 Vp-p, maximum

- 24 Vdc, 100 mA, nominal
- 24 Vdc, 450 mA, typical

ENVIRONMENTAL CHARACTERISTICS

Operating Temperature
Storage Temperature
Borehole Tilt
Borehole Casing
Hydrostatic Pressure

   - -25 to +60 ºC, non-condensing
- -55 to +85 ºC
- Less than 10 degrees
- API 7 in., 6 in. (15 cm) minimum I.D.
- Non-submersible

   PHYSICAL CHARACTERISTICS

Dimensions
Height
Diameter

Net Weight
Shipping Data
Weight
Volume


- 249 cm (98 in.), with pilot
- 13.7 cm (5.38 in.), nominal
- 14.9 cm (5.88 in.), maximum with key
- 66 kg (145 lbs.)

- 227 kg (500 lbs.)
- 1.45 m³


A complete line of ancillary equipment is available for cased boreholes of various sizes.
